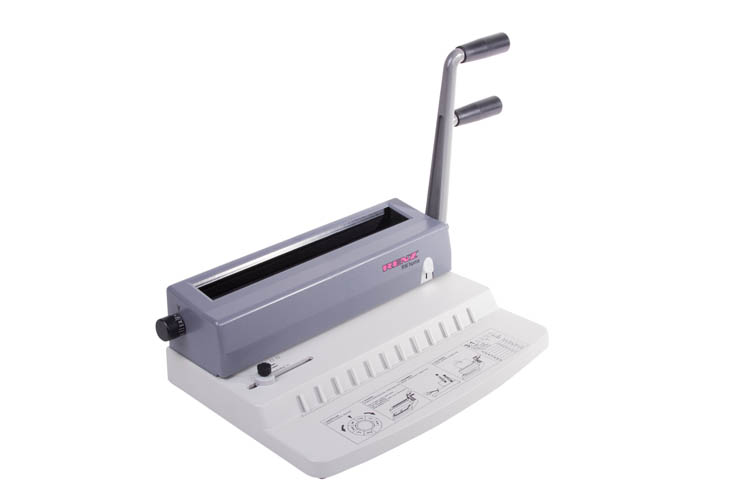

Entry-level desktop home range for punching and RENZ RING WIRE® binding. For use with low volumes of books at home.

  • Binds up to 120 sheets
  • Closure control guarantees easy ring wire closure for perfect presentations every time
  • Staggered punching pins for better punching
  • A4, A5 format changes
  • Adjustable side lay for perfect punching registration
  • Easy to empty sliding waste tray
  • Measures the document
  • Perfect bind every time
  • Compact design to fit any size home or small office
Maximum
Width

Width
300 mm

Punch up to

Punch up to
1.0 mm

Bind up to

Bind up to
12 mm

Output:
Max. punched sheets per hour

Max. punched sheets per hour
2,000

Max. bound products per hour

Max. bound products per hour
50

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 0.5 - 1.0 mm.

Punching

Insert the paper into the punching slot and pull the lever forward to punch the paper.

Insertion

After punching insert the sheets into the integrated holding fixture.

Closure

Take the punched book out of the holding fixture and insert it vertically into the closing unit to close the wire element.

To finish

Remove the document.

By using the integrated measuring scale it is very easy to determine the diameter of the wire element. Put the book under the measuring scale, push the slider downwards and read the correct diameter of the binding element.

Use the adjustment scale to select the correct diameter for closing wire.

Customer friendly colour packaging.

EAN 4029126442965
Article no. 26310060
Punching capacity sheets per hr 2,000
Min. punching width 10 mm
Max. punching width 300 mm
Min. unpunched length 50 mm
Max. unpunched length 500 mm
Max. punching thickness 1 mm
Punching operation Manual
Punch dies available Square 4.0 x 4.0 mm
Pitch 3:1
Selectable punch pins (QSA) No
Variable margin depth No
Binding thickness 1 - 12 mm
Binding element Ø 5.5 - 14.3 mm
3/16" - 9/16"
Min. binding width 10 mm
Max. binding width 300 mm
Binding operation Manual
No. of books output per hr 50
No. of calendars output per hr -
Machine dimensions L x W x H 300 x 540 x 140 mm
Machine weight 6.5 kg
Machine packing dimensions L x W x H 460 x 190 x 370 mm
Machine weight with packing 7 kg
Power requirement -

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 0.5 - 1.0 mm.
