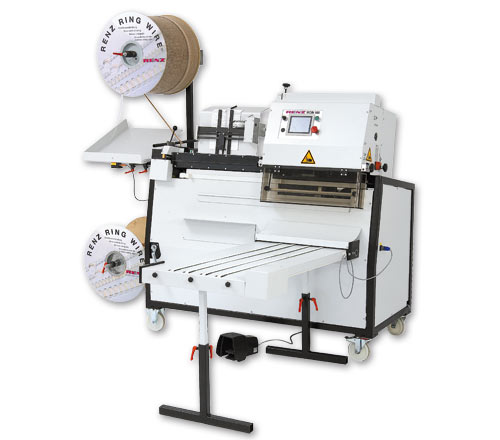

User friendly, flexible, semi-automatic RENZ RING WIRE® binding machine for books, calendars and skip binding.

  • Semi-automatic ring wire binding machine for books, calendars and skip binding
  • High flexibility of different paper formats
  • Ability to bind oversized products
  • Touch screen assisted setup process
  • Short setup times no tools required
  • Binds up to 260 sheets
  • Product is easily loaded by hanging it on to the element
  • No special training is required
  • Wheels allow the machine to be moved easily Optional extra:
    • Shingle conveyor
    • KAS calendar hanger systems
Maximum:
Width

Width
500 mm

Bind up to

Bind up to
26 mm

Output:
Max. bound products per hour

Max. bound products per hour
800

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

Operator-friendly touch screen control allowing very quick and easy format changes.

MOBI 500 diameter can be easily adjusted with inter changeable guide plates per diameter.

Pre-punched products are manually hung horizontally. A foot switch then activates the transportation and binding station, and the next wire is presented for the next product.

A standard catch tray collects the bound product. This can be upgraded with the optional shingle conveyor for quicker handling workflow.

Optional extra: Shingle conveyor - height adjustable conveyor can be used in a continuous running function or with an adjustable overlap setting.

Optional extra: KA 300 calendar hanger dispenser for loose hangers from 80 - 290 mm.

Optional extra: KA 300 R calendar hanger dispenser for hangers on reels from 80 - 290 mm.

Mechanical cycles per hour 1,000
Pitch 3:1, 2:1
Binding thickness 1 - 26 mm
Binding element Ø 5.5 - 32 mm
3/16" - 1 1/4"
Min. binding width 105 mm*
Max. binding width 500 mm
Min. unbound edge 148 mm*
Max. unbound edge 450 mm
Binding operation Foot pedal
Time required for diameter change 4 - 10 min
Format change without diameter 2 min
Calendar hangers Optional
Machine dimensions L x W x H 2,200 x 1,400 x 2,000 mm
Machine weight 500 kg (1)
Machine packing dimensions L x W x H 2,300 x 1,500 x 2,100 mm
Machine weight with packing 675 kg
Compressed air No
Power requirement 230V~50Hz / 1kW
115V~60Hz / 1kW

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. Dependent on the machine type and the configuration.
