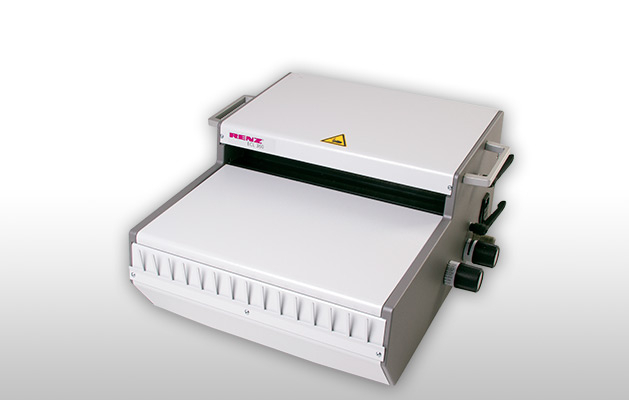

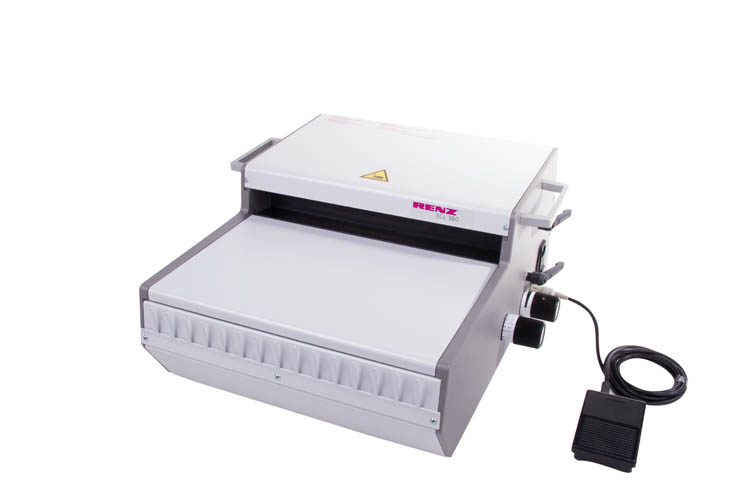

Electric RENZ RING WIRE® closing machines, no effort required. A user-friendly solution to wire bind all your products quickly and easily, available in 360 mm.
- Quick size adjustment for fast wire diameter set up
- Integrated ring wire hanging device for comfortable working
- Binds up to 340 sheets
- Fast and consistent bind cycle from the first to the last document every time
- Binds the largest diameter 1 1/2“ (38 mm) RENZ RING WIRE®
- Automatic protection safety switch
- Parallel adjustment guarantees a perfect bind every time
- Maximum:
Width
360 mm
Bind up to
34 mm
- Output:
Max. bound books per hour
400
Max. bound calendars per hour
250
| EAN | 4029126247782 |
| Article no. | 403600400 |
| Pitch | 4:1, 3:1 & 2:1 |
| Binding thickness | 1 - 34 mm |
| Binding element Ø | 6.9 - 38 mm 1/4" - 1 1/2" |
| Min. binding width | 10 mm |
| Max. binding width | 360 mm |
| Min. unbound edge | 65 mm |
| Max. unbound edge | 600 mm |
| Binding operation | Electric |
| No. of books output per hr | 400 |
| No. of calendars output per hr | 250 |
| Time required for diameter change | 20 s |
| Format change without diameter | - |
| Calendar hangers | Loose |
| Machine dimensions L x W x H | 530 x 520 x 230 mm |
| Machine weight | 38 kg |
| Machine packing dimensions L x W x H | 630 x 600 x 340 mm |
| Machine weight with packing | 42 kg |
| Power requirement | 230/250V / 50Hz / 250W 115/200V / 60Hz / 250W |
Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.
