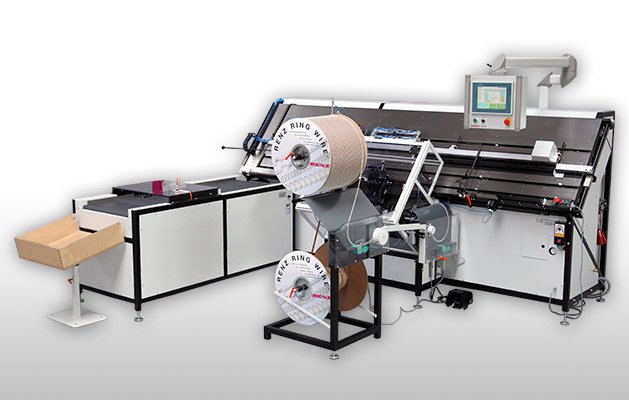

Industrial, high-speed, fully-automatic production RENZ RING WIRE® binding line for books, calendars and skip binding.
- For all types of ring wire, skip binding & calendars
- Simple & fast automatic on-screen machine setup
- Touch screen assisted set-up process
- Easy product loading
- Optional extra:
- Job memory, storage of up to 50 jobs
- KAS calendar hanger systems
- Integrated cover page lifting device
- Maximum:
Width
500 mm
Bind up to
15 mm
- Output:
Max. bound products per hour
2,000
| Mechanical cycles per hour | 2,100 |
| Pitch | 3:1, 2:1 |
| Binding thickness | 15 mm |
| Binding element Ø | 5,5 - 19 mm 3/16“ - 3/4“ |
| Min. binding width | 70 mm |
| Max. binding width | 500 mm |
| Min. unbound edge | 135 mm (1) |
| Max. unbound edge | 700 mm (1) |
| Binding operation | Automatic |
| Time required for diameter change | 20 min |
| Format change without diameter | 3 min |
| Calendar hangers | Optional |
| Machine dimensions L x W x H | 3,300 x 2,300 x 1,600 mm (3) |
| Machine weight | 1,300 kg (2) |
| Machine packing dimensions L x W x H | Dependent on the configuration |
| Machine weight with packing | Dependent on the configuration |
| Compressed air | 7.5 bar / 450 l/min |
| Power requirement | 3/N/PE~400/230V 50Hz / 3.5kW 3/PE~200/115V 60Hz / 3.5kW |
Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. Dependent on the machine type and the configuration. (1)Special adaptor kits required for other formats.
(2) Weight without closing bars. (3) Dependent on the machine type and the configuration.
