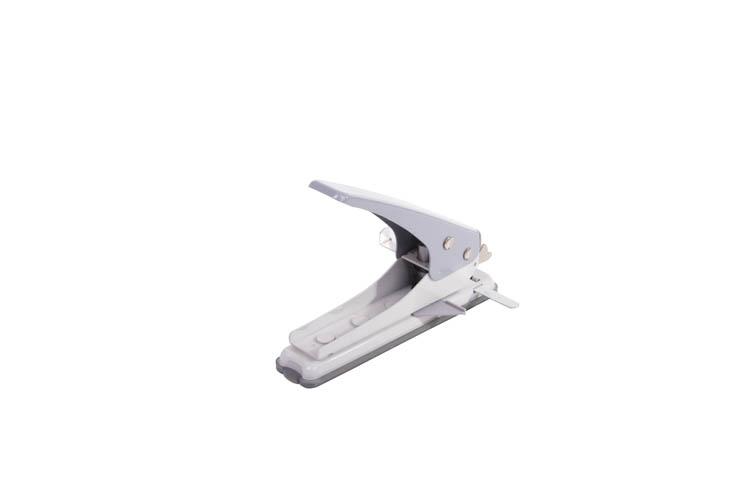

Reliable, desktop, hand thumb cut calendar punch machine producing a 20 mm thumb cut.
- Manually punch 20 mm calendar thumb cuts.Allows a calendar hanger to now be used in the binding
- Quick adjustment up to A3 on the short edge
- Horizontal paper feeding
- Compact simple design
- Maximum:
Width
300 mm
Punch up to
2.0 mm
- Output:
Max. punched sheets per hour
8,000
| EAN | 4029126265885 |
| Article no. | 360009400 |
| Mechanical cycles per hour | 800 |
| Min. punching width | 70 mm |
| Max. punching width | 300 mm |
| Min. unpunched length | 60 mm |
| Max. unpunched length | 800 mm |
| Max. punching thickness | 2 mm |
| Punching operation | Manual |
| Punch dies available | 20 mm calendar thumb cut |
| Selectable punch pins (QSA) | - |
| Bespoke dies | - |
| Variable margin depth | - |
| Die changeover time | - |
| Machine dimensions L x W x H | 250 x 50 x 170 mm |
| Machine weight | 1.2 kg |
| Machine packing dimensions L x W x H | 260 x 90 x 60 mm |
| Machine weight with packing | 1.3 kg |
| Power requirement | - |
The horizontal closing mechanism of the RENZ SRW 360 allows you to bind the calendar easily together with the hanger. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.0 - 2.0 mm.
