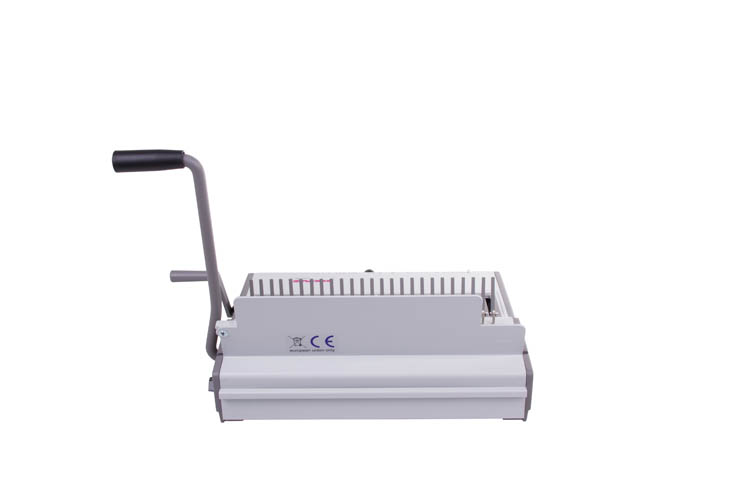

Desktop plastic comb punching and binding machine. For all types of comb book production. Designed to produce documents of all sizes in low and medium volumes quickly and easily. This manual punching and manual binding machine is designed for regular use in a small to medium sized office.
- Binds up to 480 sheets
- Closure control guarantees easy comb closure
- Gauge to alter margin for a stronger bind
- Special hardened punch pins for long lasting life
- Staggered punching pins for better punching
- QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5 and A4
- Adjustable side lay for perfect punching registration
- Easy to empty sliding waste tray
- Measures the document or comb size
- Heavy duty construction & compact design
- Maximum:
Width
340 mm
Punch up to
2.5 mm
Bind up to
48 mm
- Output:
Max. punched sheets per hour
12,000
Max. bound products per hour
200
| EAN | 4029126112080 |
| Article no. | 26340020 |
| Punching capacity sheets per hr | 12,000 |
| Min. punching width | 10 mm |
| Max. punching width | 340 mm |
| Min. unpunched length | 50 mm |
| Max. unpunched length | 500 mm |
| Max. punching thickness | 2.5 mm |
| Punching operation | Manual |
| Punch dies available | Oblong 8 x 3 mm |
| Pitch | US |
| Selectable punch pins (QSA) | Yes |
| Variable margin depth | Yes |
| Binding thickness | 1 - 48 mm |
| Binding element Ø | 6 - 52 mm |
| Min. binding width | 10 mm |
| Max. binding width | 340 mm |
| Binding operation | Manual |
| No. of books output per hr | 200 |
| Machine dimensions L x W x H | 360 x 490 x 90 mm |
| Machine weight | 10 kg |
| Machine packing dimensions L x W x H | 620 x 480 x 345 mm |
| Machine weight with packing | 11.9 kg |
Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.
